Home PC Cases NZXT H510
Product Details

SPECIFICATIONS

Dimensions

Height 460mm / 18.11 inches
Width 210mm / 8.27 inches
Depth 428mm / 16.85 inches
Weight 7.5 kg / 16.53 lb

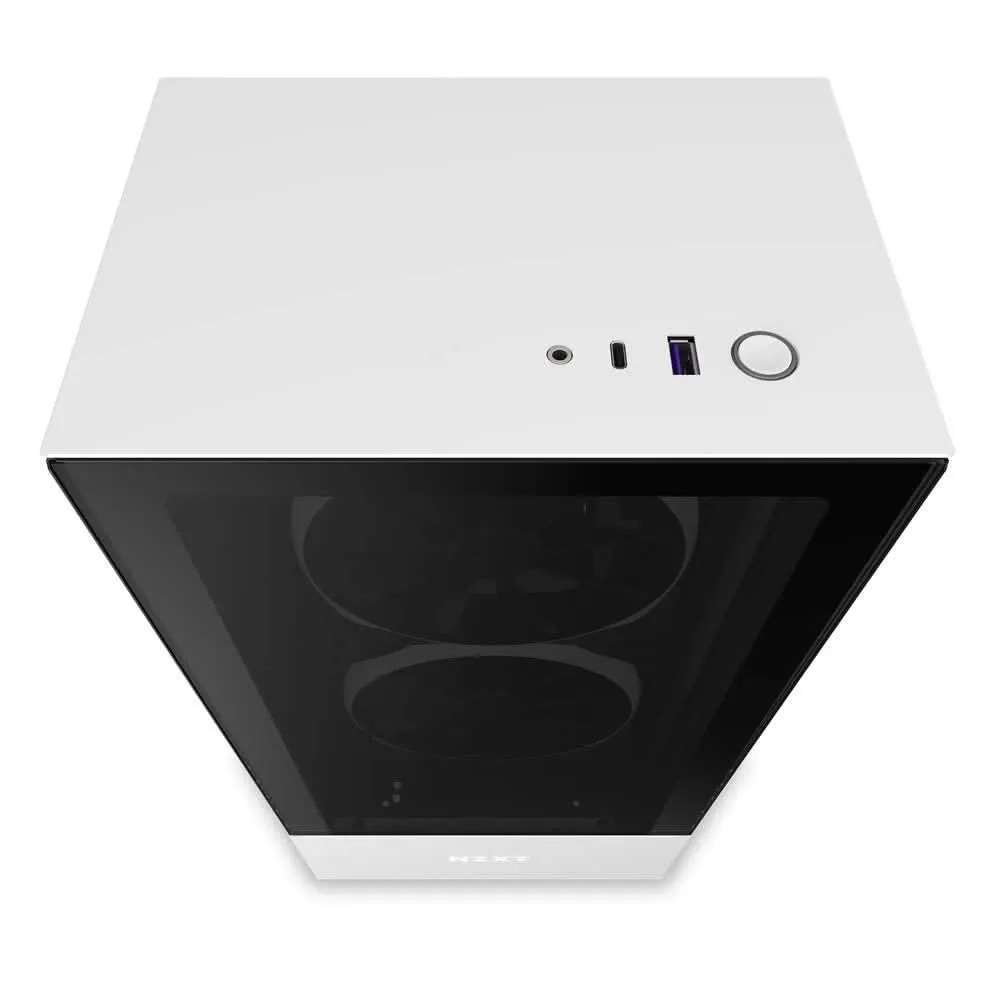

Front I/O Ports

USB 3.2 Gen 2 Type-A 1
USB 3.2 Gen 1 Type-C 1
Headset Audio Jack 1

Expansion Slots

Standard 7
Vertical 2

Fan Support

Front 2 x 120mm / 2 x 140mm
Top 1 x 120mm / 1 x 140mm
Rear 1 x 120mm
Filters All air intakes

Fan Specs

Model Aer P 120mm (Case Version)
Speed 1,200 ± 200RPM
Airflow 50.42 CFM
Noise 28 dBA
Fan Connector 3-pin

Compatibility & Clearance

Max CPU Cooler Clearance 165mm
Max GPU Clearance 338 - 368mm
Front Fan & Radiator Clearance 60mm
Vertical GPU Clearance 50.8mm
Cable Management 19 - 23mm

Smart Device

Fan Channels 3 (10W max per channel)
NZXT RGB Connector 2 (Support up to 40 LEDs)

Drive Bays

2.5" 2 1
3.5" 2 1

Radiator Support

Front 280mm
Top -
Rear 120mm

Fan Specs

Model Aer P 140mm (Case Version)
Speed 1,000 ± 200RPM
Airflow 68.95 CFM
Noise 28 dBA
Fan Connector 3-pin

General

Warranty 2 Years
Model Number CA-H510E-W1
UPC 8.16E 11
EAN 5.06E 12

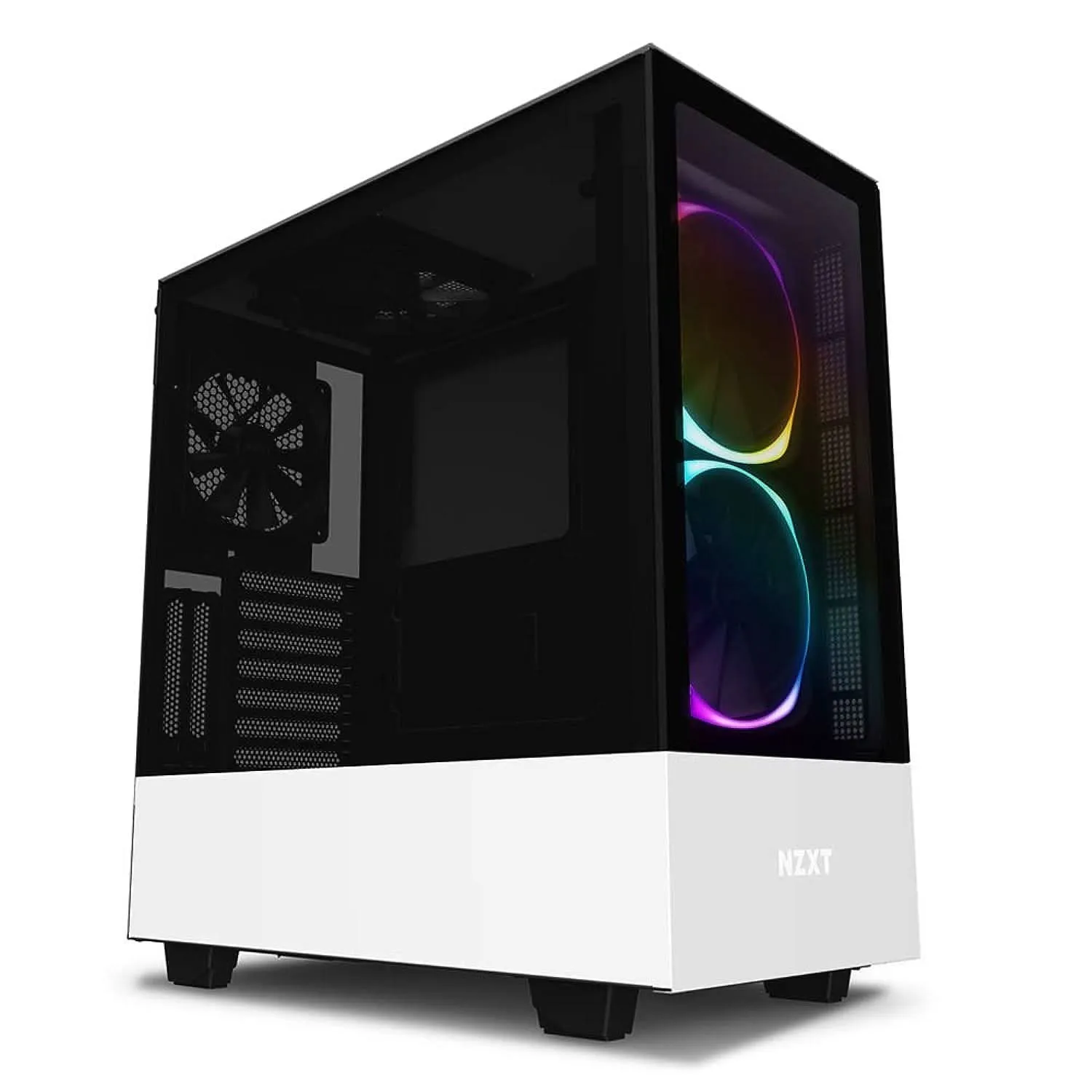

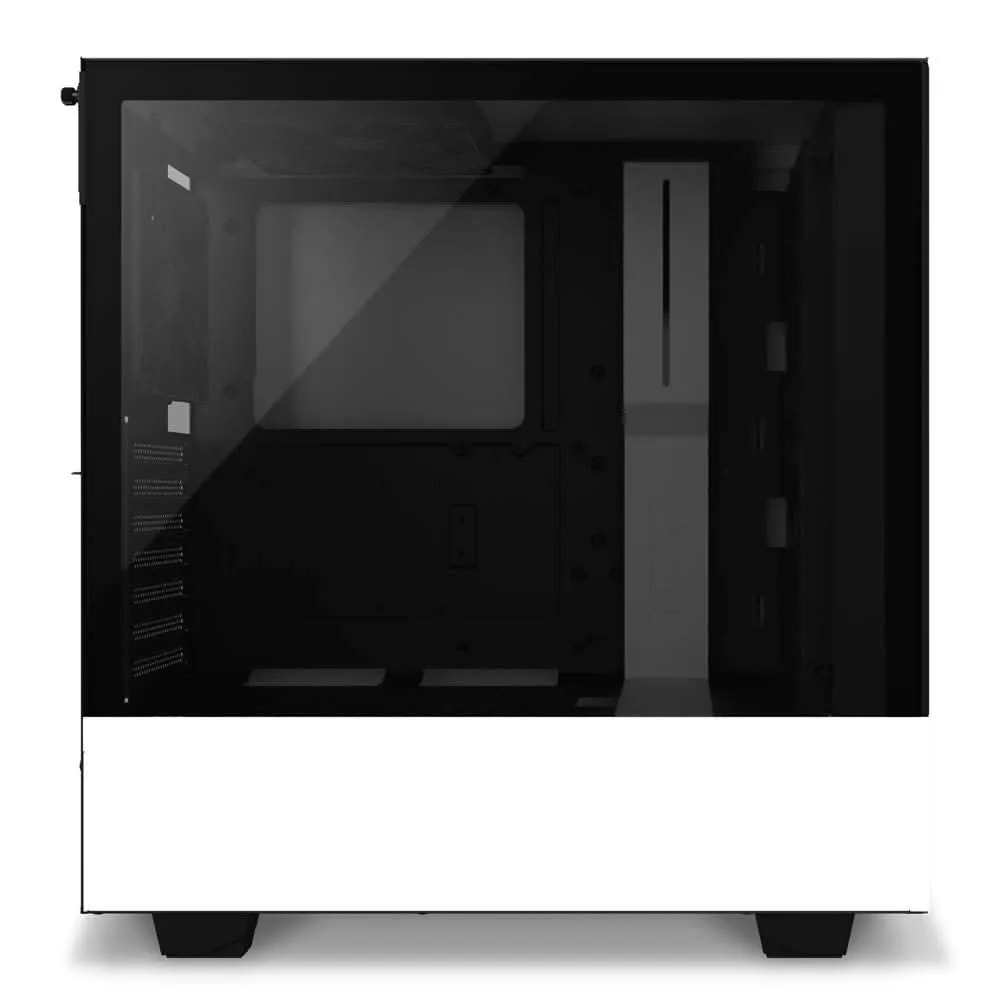

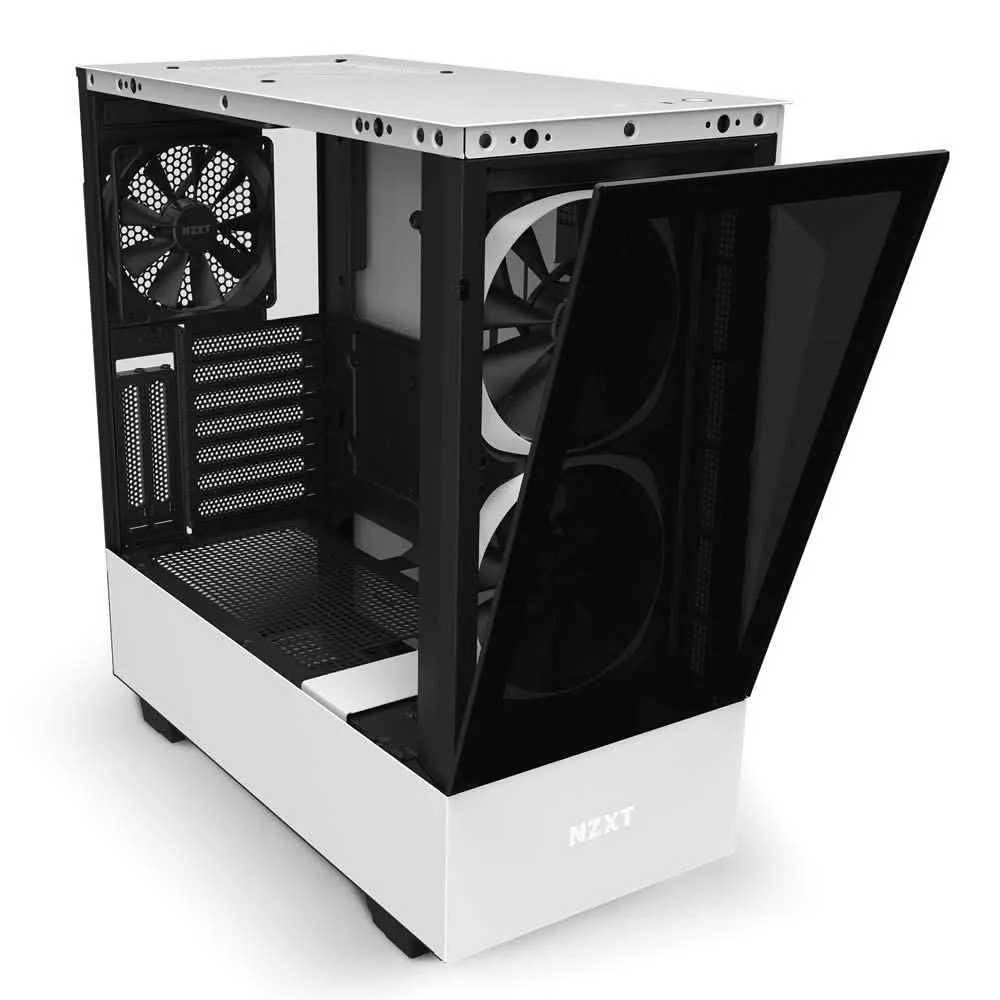

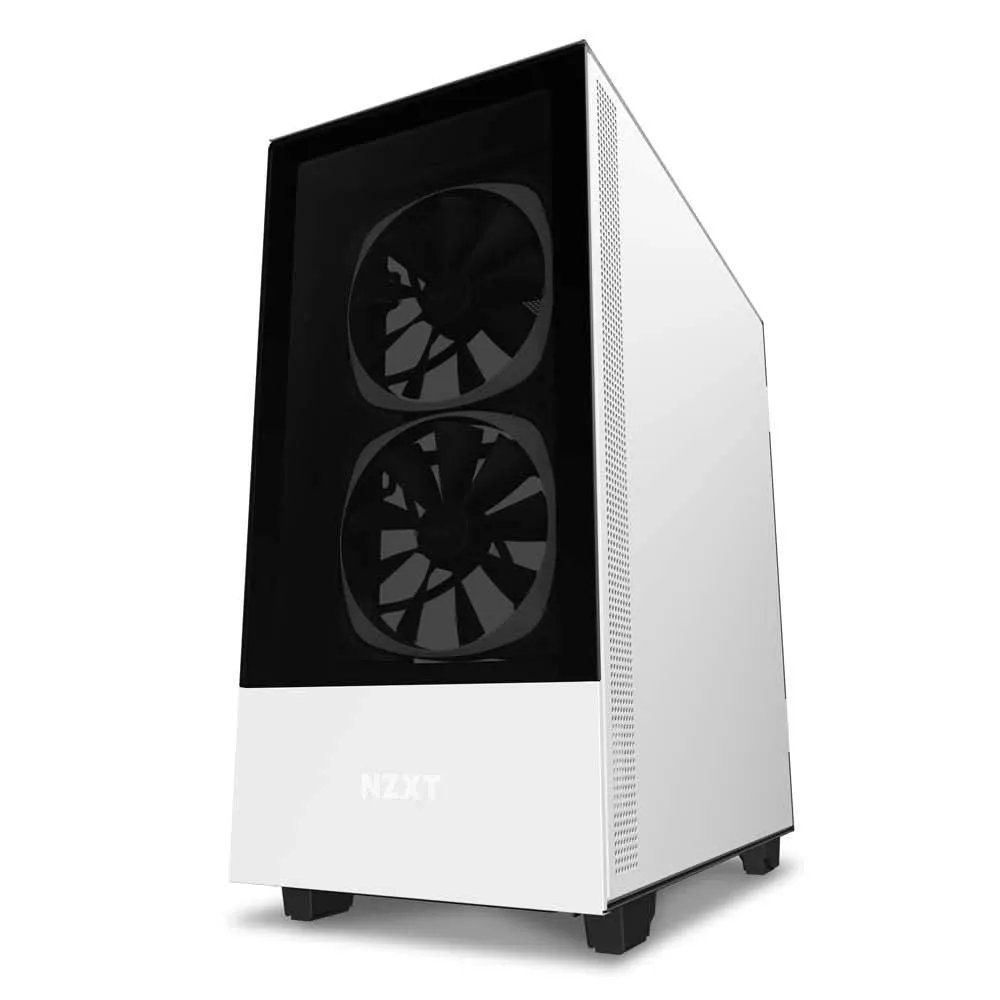

NZXT H510 ELITE MID-TOWER ATX CABINET WHITE
  • DefaultTitle

$ 89.54

$ 68.88
