Product Details
＋

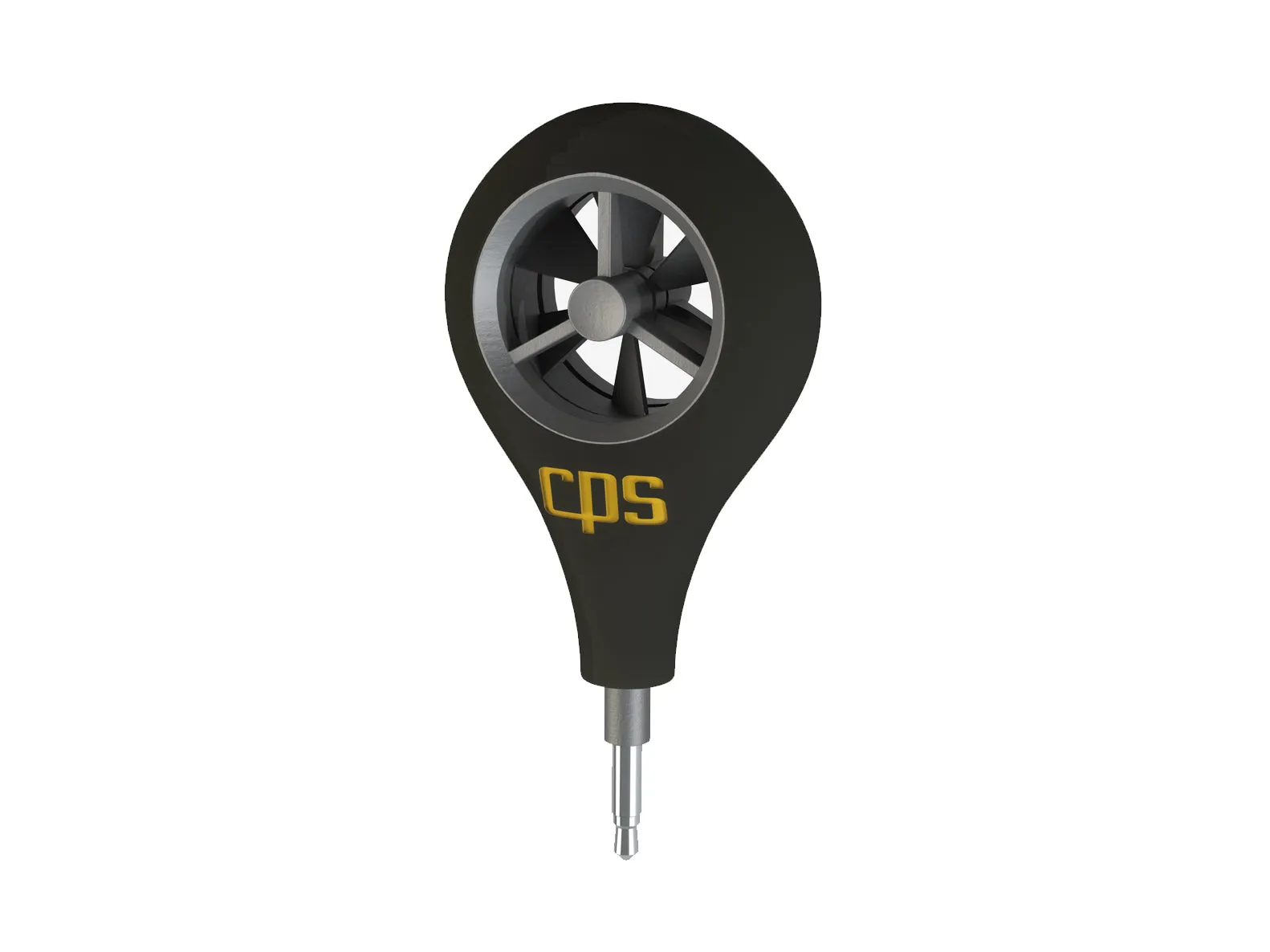

CPS Products ABM-100 Portable Smartphone Airflow Meter
Products usually ship within 1 business day.
A compact, portable anemometer that, when plugged into a smartphone or tablet running the latest , captures airspeed values from air supply or air return vents in residential or commercial buildings and converts these values into air volume readings.
- Accurately measures airflow in: Linear feet per minute, cubic feet per minute, cubic meters per hour, linear meters per second
- Portable tool fits in your pocket
- Easy to use - no math or formulas to remember
- Automatically generates and emails detailed reports
- Rugged, eco-friendly packaging serves as a reusable storage case
KEY FEATURES
- Free CPS Link app provides on-screen guidance for for fast, intuitive, easy-to-use airflow analysis:
- Linear feet/minute
- Cubic feet/minute
- Linear meters/second
- Cubic meters/hour
- Test and Balance Report - Automatically generated from data collected.
- Geolocation feature - to record where and when job performed
- Send professional jobsite reports by email
- Add custom notes to each reading if desired
- Ability to adjust the free space calculation (if grille is present).
- Select from 4 languages to work in (English, French, Spanish, German)
- Compatible with iPhone, iPad, iPod, and all major Android devices
SPECIFICATIONS
| Operational Temperature Range: | -40°F to 185°F (-40°C to 85°C) |
| Operational Temperature Range Full Accuracy: | -32°F to 149°F (0°C to 65°C) |
| Power Source: | Smart Device |
| Auto Power Off: | 30 seconds after minimizing app or no connection |
| Air Volume Units (Selectable): | CFM or M3/H |
| Air Velocity Units (Selectable): | LFM, LM/S |
| Length/Width Units (Selectable): | Inches or centimeters (for duct opening) |
| Velocity Range: | 160 FPM to 11,000 FPM (1 m/s to 56 m/s) |
| Velocity Accuracy: | /- 0.5% of reading at up to 15° off-axis |
| Resolution: | 1 FPM (0.1 M/S). |
| CPS Link: | Patented modular test and measurement system technology |
