Product Overview

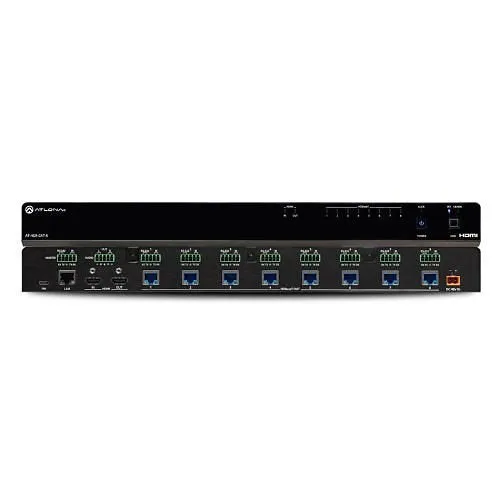

The Atlona AT-HDR-CAT-8 is a high dynamic range (HDR) distribution amplifier with one HDMI® input and eight HDBaseT™ outputs. Each output transmits 4K/UHD video 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-CAT-8 features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a 1U, full rack width enclosure with external universal power supply. The HDR-CAT-8 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers. The HDR-CAT-8 is part of a family of 4K HDR HDMI to HDBaseT distribution amplifiers that also includes the HDR-CAT-2 two output, HDR-CAT-4 four output, and HDR-CAT-4ED four output extended distance models.

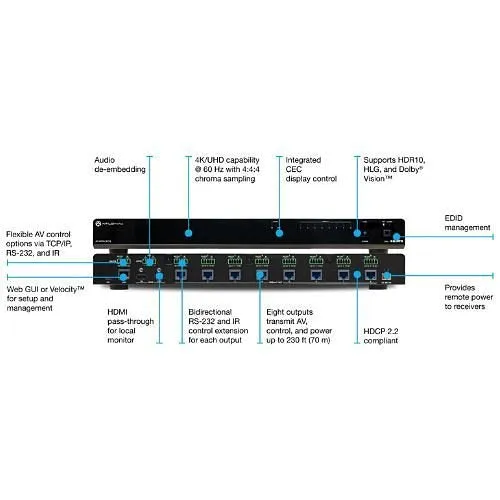

- 4K HDR distribution amplifier with one HDMI input and eight HDBaseT outputs
- Pass-through HDMI output to support local monitor
- 4K/UHD capability at 60Hz with 4:4:4 chroma sampling
- Supports HDR10, HLG, and Dolby® Vision™ HDR formats
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
- HDBaseT outputs extend HDMI, control signals, and power up to 130' for 4K HDR or 230' for 1080p with Category 6/6A
- Bidirectional RS-232 and IR control extension for each output
- Remotely powers compatible receivers over HDBaseT
- Audio de-embedding to balanced analog output with volume control for integration with a separate audio system
- CEC display control sends display power on/off commands to the pass-through HDMI output and HDBaseT receiver HDMI outputs using the power button, IP, or RS-232
