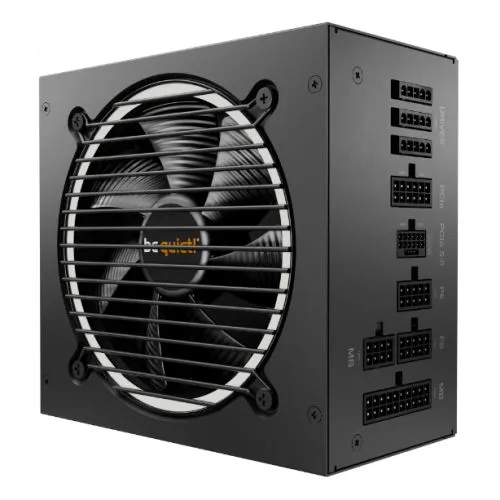

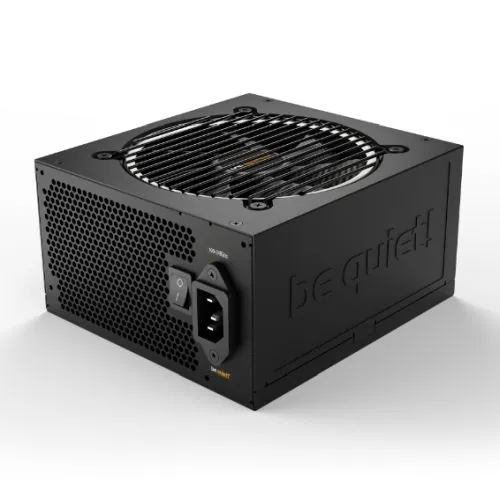

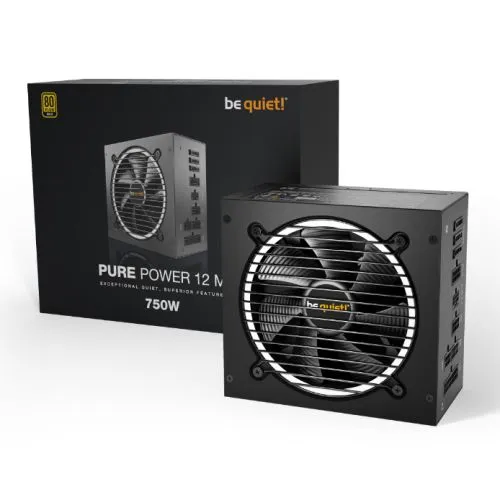

Name: 750W Be Quiet! Pure Power 12 M ATX 3.0 Gold PSU
SKU: 689073

Product Details ＋

EXCEPTIONAL QUIET, SUPERIOR FEATURES

Pure Power 12 M 750W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 750W offers the best combination of features with outstanding compatibility.

80 PLUS^® Gold efficiency (up to 92.6%)
ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6 2 pin connectors
Exceptionally silent 120mm be quiet! fan
Advanced stability and voltage regulation thanks to LLC technology
2 strong 12V-rails
Modular cables for maximum build flexibility
One PCIe 5.0 12VHPWR 600W and 2 PCIe 6 2 connectors for high-end GPUs
10-year manufacturer’s warranty

80 PLUS^® GOLD CERTIFIED

Very high operating efficiency

Pure Power 12 M 750W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.6%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 750W is always the correct choice for quiet systems and gaming PCs!

FUTURE-PROOF YOUR SYSTEM

Fulfills all ATX 3.0 specifications

Pure Power 12 M 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6 2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful present systems.

THE NEW STANDARD OF POWER

For massive transient loads

Pure Power 12 M offers 750W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

UNPRECEDENTED SILENT OPERATION

Achieved with a silence-optimized be quiet! fan

The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class
quiet functionality.

HIGH-CLASS TECHNOLOGIES

Rock-solid stability

With its LLC topology Pure Power 12 M 750W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.

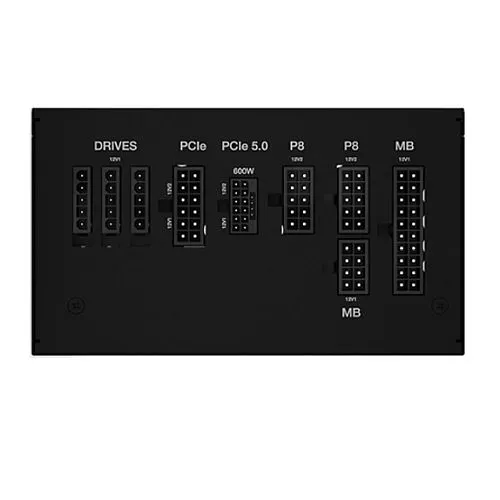

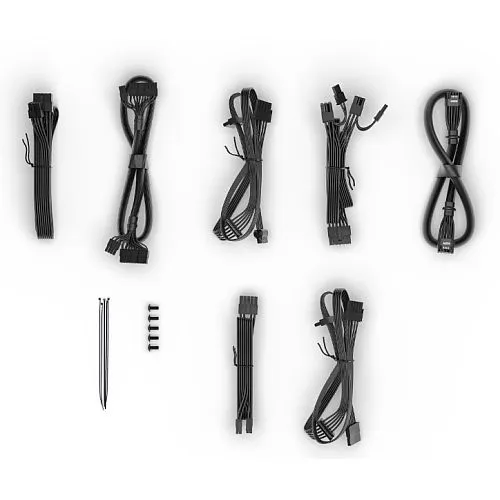

MODULAR CABLES

Utmost convenience and compatibility

Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 750W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.

Model	Pure Power 12 M 750W
Continuous power (W)	750
Peak power (W)	820
Form factor	Version 3.0
Form factor EPS 12V	Version 2.92
Topology	LLC SR DC/DC
Digitally controlled	-
Voltage (Vac)	100 - 240
Frequency (Hz)	50 - 60
Input current (A)	10 / 5
Power factor at 100% load	>0.98
Modern standby	✓
Power consumption in standby (W)	<0.1
Average life time (h / 25°C)	>100,000
Operating temperature up to (°C)	40
